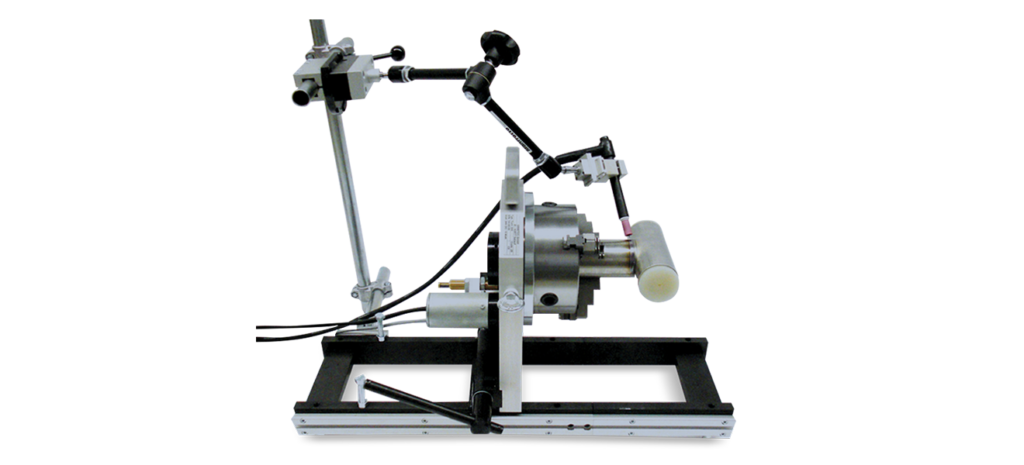

Tigtronic Turn 300 Turn Table System
A turn table system for welding small non-standard components and assemblies, suitable for small and large batch work and development welding (wire feed and AVC available dependent on controller being used).
- Turn table
- Bed-plate with assorted fixings and positional plate
- Multi-positional torch arm for infinite adjustment of torch position
- TIG-torch Bracket
- 8.5mtr cable assembly & ground cable
- Cable for connection to Tigtronic controller with Orbifeed plug
- Chuck key
Turn 300, Item No. 1.2.1801
- Size range: 10mm OD up to 300mm OD
- Hollow shaft (Dia. 70mm) for purging components through the centre
- Step less positional adjust from horizontal through vertical High quality three-jaw chuck
- Can be used with AVC (arc voltage control) – (additional components required in conjunction with the Tigtronic Basic 3, Orbital 3 or Integral controllers).
- Additional automation such as pneumatic clamping, tailstock support available on request.
