Tigtronic Orbital Controllers

Affordable, compact microprocessor-based controller for orbital welding with open tongs, enclosed heads, tube-to-tubesheet weld heads, and turntables.

Our proven Tigtronic standard controller is now in its 5th generation. All installed electronic components are based on the latest technology and are powerful and efficient. A cooling unit or an AVC upgrade kit can be used optionally.

Product Range

Enquire

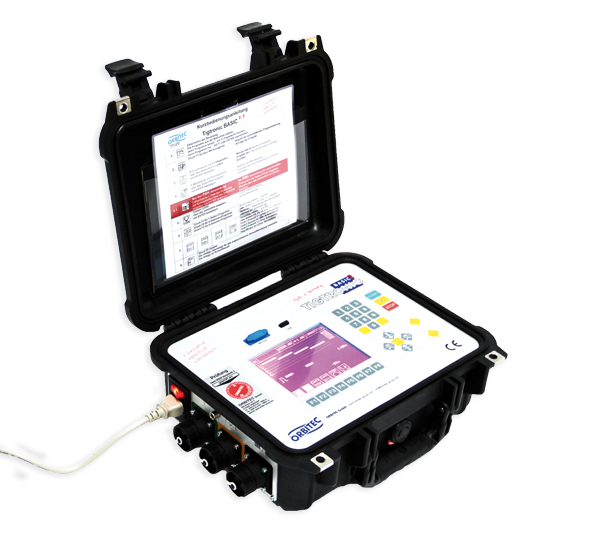

Tigtronic Basic 2 Controllers

Item number: 1.3.0200

Enquire
  • 5.7″ display, fixed
  • Extremely simple multilingual user guidance thanks to programming support: Managed input of the tube outer diameter, wall thickness and weld head indicator
  • Monitoring of gas and water cooling
  • Option of welding in up to SIX sectors, in continuous or step travel mode
  • Individual modification of the calculated program parameters, also using current percentage button
  • Graphic display of the welding progress
  • Real-time monitoring of the welding parameters
  • Integrated day counter (assignment to isometries and weld joint numbers)
  • Storage of up to 99 welding programs
  • Storage of up to 400 actual parameters
  • Software updates possible
  • Error tracking program
  • Option for connecting a remote control (The controller can also be operated from the display without a remote control)
  • Connection for oxygen analysers
  • Data transfer of target / actual parameters and programs over the USB interface
  • Compact and lightweight with outer dimensions of (L x W x H) 340 x 295 x 150 mm and a weight of only 5.5 kg
  • Autorange 90 – 260 V

Controller

Power cable

Controller / power source interface cable

USB stick

COOL 50 or EVO COOL cooling unit

AVC upgrade kit

Tigtronic Basic 3 Controllers (Autorange)

Item number: 1.3.0204

Enquire

Controller

Power cable

Controller / power source interface cable

USB stick

integrated wire card

Tigtronic basic 4 controllers (Autorange)

Item number: 1.3.0201

Enquire

Controller

Power cable

Controller / power source interface cable

USB stick

integrated wire card

special software only for RBK tube-to tubesheet weld heads

Tigtronic Orbital 5.2 Controller (Autorange)

The 5th generation of our reliable, tried-and-tested standard controller.
Can be connected to TETRIX 200 or TETRIX 351.

Item number: 1.3.0052

Brochure
Enquire
  •  5.7″ display
  • Extremely simple multilingual user guidance thanks to programming support (entry of tube outer diameter, wall thickness and weld head indicator)
  • Monitoring of gas and water cooling
  • Option of welding in up to SIX sectors, in continuous or step travel mode
  • Individual modification of the calculated program parameters, also using
    current percentage button
  • Graphic display of the welding progress
  • Real-time monitoring of the welding parameters
  • Integrated day counter (assignment to isometries and weld joint numbers)
  • Storage of up to 99 welding programs
  • Storage of up to 400 actual parameters
  • Data transfer of welding parameters and programs via USB interface
  • Software updates via USB possible
  • Error tracking program
  • Option of connecting a remote control (the controller can also be operated from the display without a remote control)
  • Connection for oxygen and purge pressure analysers
  • Compact and lightweight with outer dimensions of (L x W x H) 405 x 325 x 170 mm and a weight of only 8.3 kg
  • Autorange 100 – 240 V

Controller

Power cable

Controller / power source interface cable
USB stick

2 pieces tungsten boxes

Pen with touch screen function and LED light

COOL 50 or EVO COOL cooling unit

AVC upgrade kit

Tigtronic Orbital 5.3 Controller (Autorange)

With special software only for RBK tube-to tubesheet weld heads

Item number: 1.3.0053

Brochure
Enquire
  •  5.7″ display
  • Extremely simple multilingual user guidance thanks to programming support (entry of tube outer diameter, wall thickness and weld head indicator)
  • Monitoring of gas and water cooling
  • Option of welding in up to SIX sectors, in continuous or step travel mode
  • Individual modification of the calculated program parameters, also using
    current percentage button
  • Graphic display of the welding progress
  • Real-time monitoring of the welding parameters
  • Integrated day counter (assignment to isometries and weld joint numbers)
  • Storage of up to 99 welding programs
  • Storage of up to 400 actual parameters
  • Data transfer of welding parameters and programs via USB interface
  • Software updates via USB possible
  • Error tracking program
  • Option of connecting a remote control (the controller can also be operated from the display without a remote control)
  • Connection for oxygen and purge pressure analysers
  • Compact and lightweight with outer dimensions of (L x W x H) 405 x 325 x 170 mm and a weight of only 8.3 kg
  • Autorange 100 – 240 V

Controller

Power cable

Controller / power source interface cable
USB stick

2 pieces tungsten boxes

Pen with touch screen function and LED light

COOL 50 or EVO COOL cooling unit

AVC upgrade kit

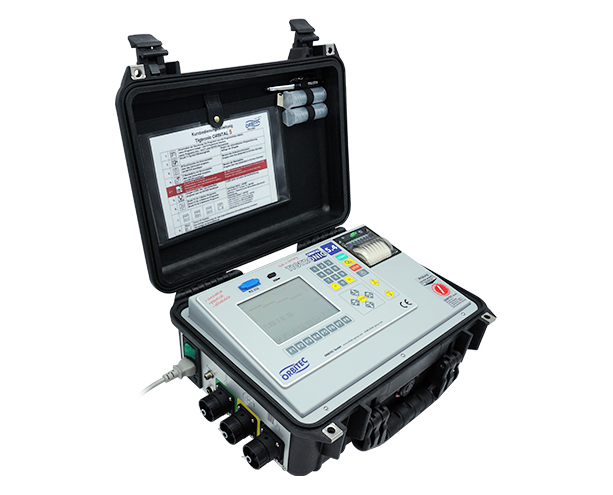

Tigtronic Orbital 5.4 Controller (Autorange)

The 5th generation of our reliable, tried-and-tested standard controller.
Can be connected to TETRIX 200 or TETRIX 351.

Item number: 1.3.0054

Brochure
Enquire
  • 5.7″ display
  • Extremely simple multilingual user guidance thanks to programming support (entry of tube outer diameter, wall thickness and weld head indicator)
  • Monitoring of gas and water cooling
  • Orbital tacking mode can be activated
  • Option of welding in up to SIX sectors, in continuous or step travel mode
  • Individual modification of the calculated program parameters, also using current percentage button
  • The current and wire feed parameters can also be changed during welding
  • Graphic display of the welding progress
  • Real-time monitoring of the welding parameters
  • Integrated day counter (assignment to isometries and weld joint numbers)
  • Storage of up to 99 welding programs
  • Storage of up to 400 actual parameters
  • Data transfer of welding parameters and programs via USB interface
  • Software updates via USB possible
  • Error tracking program
  • Option of connecting a remote control (the controller can also be operated from the display without a remote control)
  • Connection for oxygen and purge pressure analysers
  • Integrated wire card
  • Integrated thermo printer (longlife paper) with multilingual printout of actual /taget parameres
  • Compact and lightweight with outer dimensions of (L x W x H) 405 x 325 x 170 mm and a weight of only 8.3kg
  • Autorange 100 – 240 V

Controller

Power cable

Controller / power source interface cable
USB stick

2 pieces tungsten boxes

Pen with touch screen function and LED light

COOL 50 or EVO COOL cooling unit

AVC upgrade kit

Accessories

AVC Card for Step Motors Upgrade Kit (RBK S)

Item number: 1.3.0036

Brochure

AVC Upgrade Kit for Tigtronic Controllers AVC Card for DC Motors Upgrade Kit (Turn)

Item number: 1.3.0031

Brochure

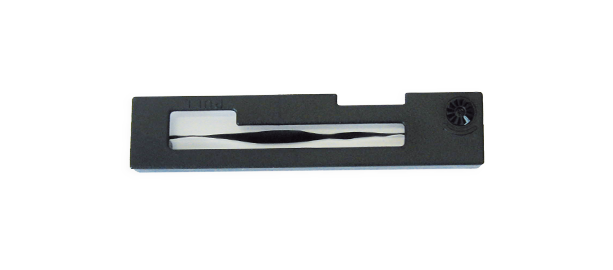

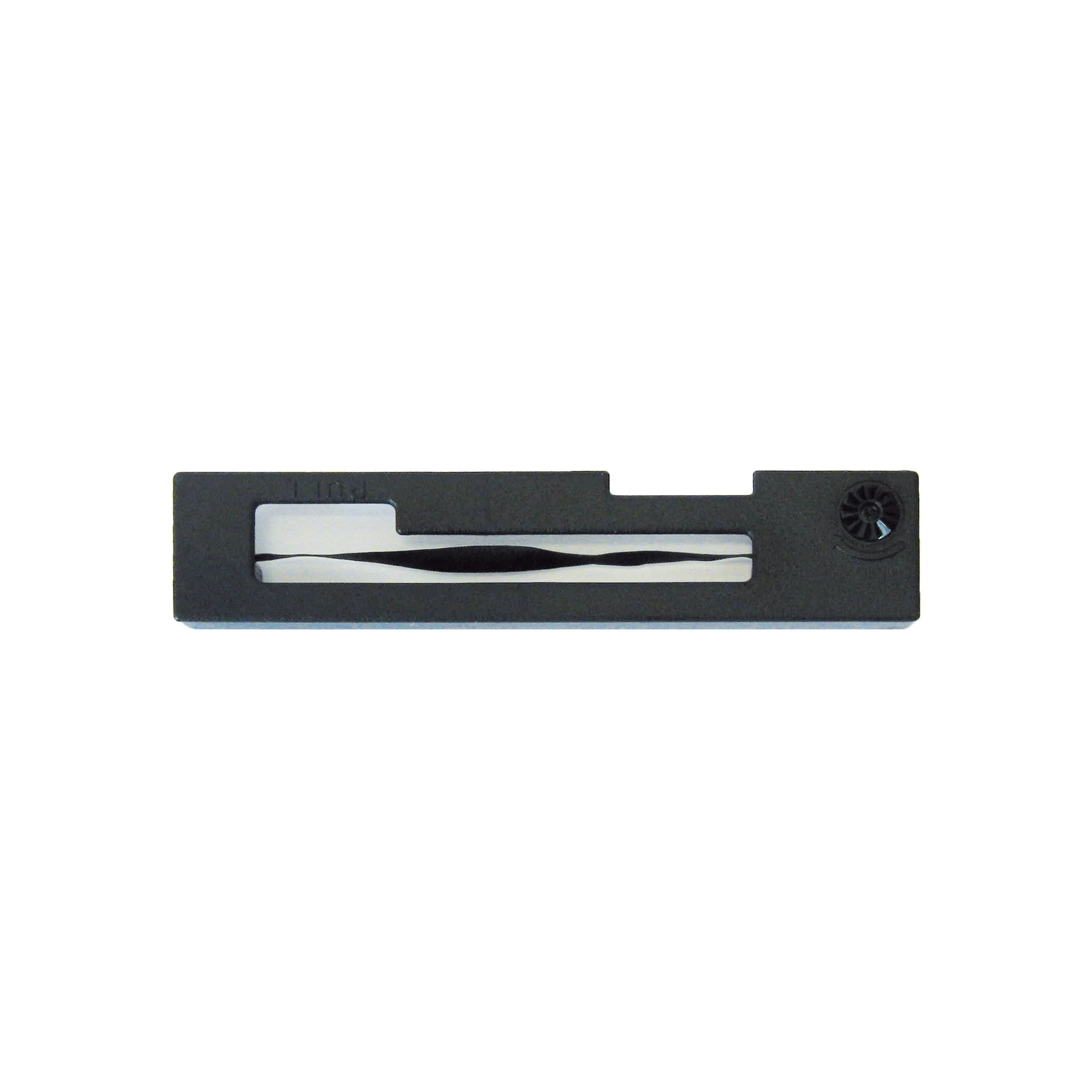

Spare ribbon cartridge for controllers with integrated printer

Item number: 1.3.0003

Brochure

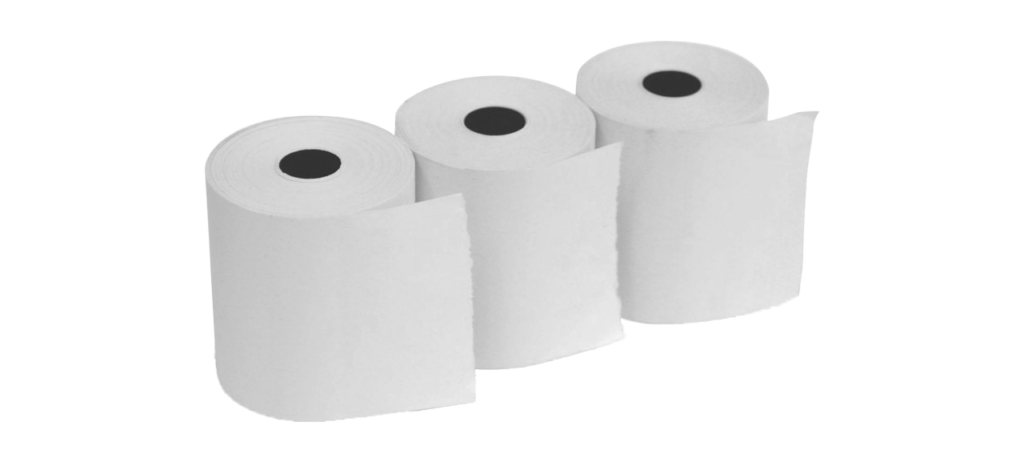

Spare paper rolls for Tigtronic controllers

Item number: 1.3.0002

Brochure

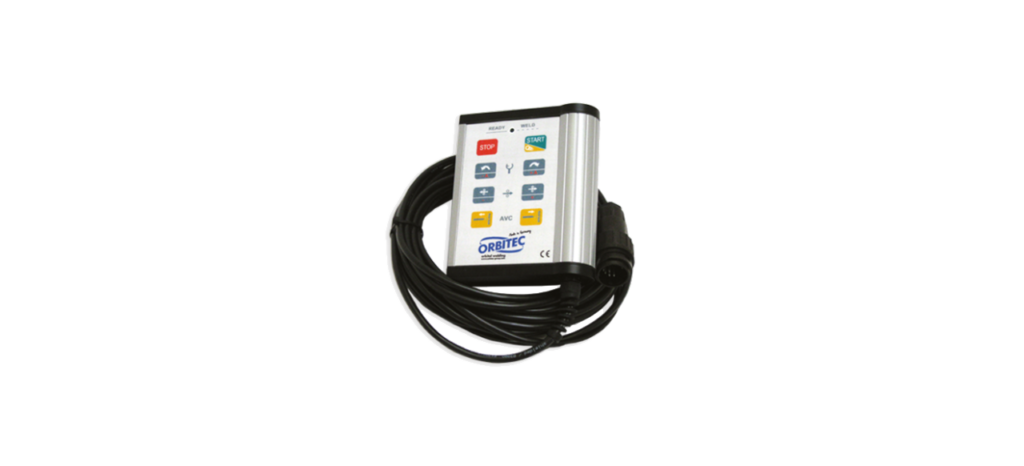

Orbitcontrol 3 Remote Control

Item number: 1.3.0030

Brochure

8 m Cable Remote Control for all Orbital Controls

Item number: 1.3.003003

Brochure

Ground Cable 35 mm²

Item number: 1.3.0125

Brochure

Ground Cable 50 mm²

Item number: 1.3.0146

Brochure

Gas Hose 3 m

Item number: 1.3.0121

Brochure

Special Argon Pressure Regulator with triple flowmeters, brass

Item number: 1.2.0134

Brochure

0.5 – 10 Bar Compressed Air Pressure Regulator

Item number: 1.2.0151

Brochure

200 / 10 Bar Argon Pressure Regulator

Item number: 1.2.0150

Brochure

Special Pressure Regulator with twin flowmeter for H2 gases, brass

Item number: 1.2.0144

Brochure

Special Argon Pressure Regulator with twin flowmeter, brass

Item number: 1.2.0123

Brochure
